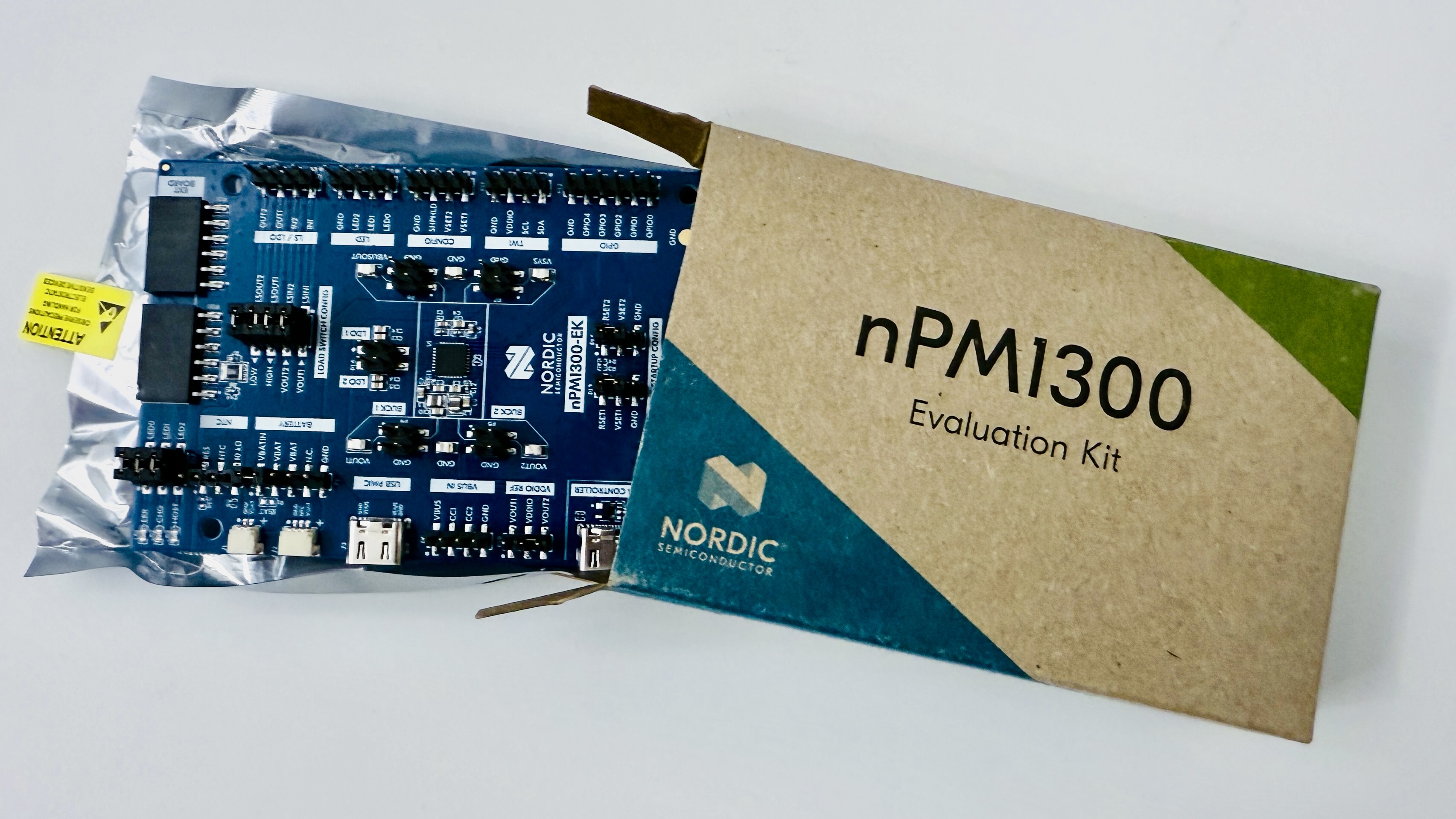

Nordic nPM1300 PMIC Evaluation Board!

A Power Management Integrated Circuit (PMIC) is a critical component in modern electronic devices, designed to manage power requirements efficiently. It takes input from a DC power supply or a battery, delivers regulated power to various system components, and often includes functionality to charge an onboard battery.

A PMIC integrates multiple power management functions into a single chip, optimizing energy usage and reducing system complexity. Its primary functions include:

Voltage Regulation

PMICs convert input voltages from a DC power supply (e.g., USB or wall adapter) or a battery into stable, regulated voltages required by different components, such as processors, memory, or sensors. This is achieved through:

  • DC-DC Converters: Buck converters step down voltage, while boost converters step it up, ensuring efficient power delivery.
  • Low-Dropout Regulators (LDOs): Provide precise, low-noise voltage for sensitive components.

Battery Management

PMICs manage battery charging and discharging. They regulate the charging process to ensure safety and longevity, supporting protocols like constant current/constant voltage (CC/CV) charging for lithium-ion batteries. Key features include:

  • Overcharge and over-discharge protection.
  • Thermal regulation to prevent overheating.
  • Battery status monitoring (e.g., state of charge).

Power Sequencing

Many electronic systems require components to power on or off in a specific order to avoid damage or instability. PMICs ensure proper sequencing by controlling the timing of voltage rails.

Power Path Management

PMICs intelligently switch between power sources (e.g., battery or external DC supply) to ensure uninterrupted operation. For example, when a device is plugged in, the PMIC may prioritize the external supply while simultaneously charging the battery.

Additional Features

Modern PMICs often include auxiliary functions like:

  • Power monitoring and reporting.
  • Sleep or low-power modes for energy conservation.
  • Protection mechanisms against overvoltage, overcurrent, or short circuits.

The PMIC achieves these functions through a combination of analog and digital circuits, including switching regulators, control logic, and communication interfaces (e.g., I2C or SPI) for configuration and monitoring.

Applications of PMICs

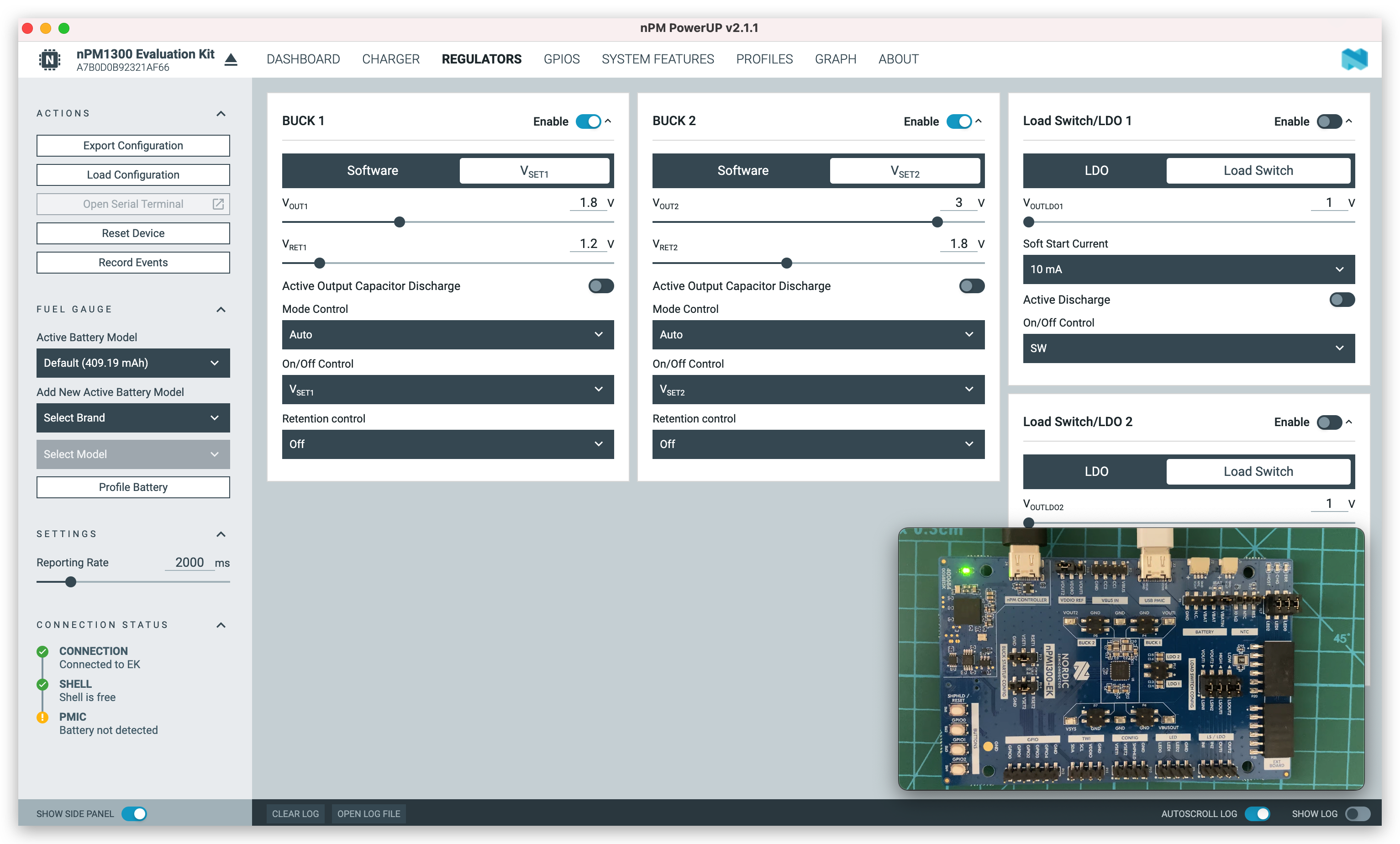

The nPM1300 board connected/controlled via the npmPowerUp companion app.

PMICs are ubiquitous in battery-powered and energy-conscious devices, including:

  • Consumer Electronics: Smartphones, tablets, laptops, and wearables rely on PMICs to manage power for processors, displays, and peripherals while optimizing battery life.
  • IoT Devices: Low-power sensors and connected devices use PMICs to operate efficiently in energy-constrained environments.
  • Automotive Systems: PMICs regulate power in electric vehicles, infotainment systems, and advanced driver-assistance systems (ADAS).
  • Medical Devices: Portable diagnostic tools and implantable devices use PMICs for reliable power delivery and battery management.
  • Industrial Equipment: PMICs ensure stable power in robotics, automation systems, and other industrial applications.

Importance of PMICs

PMICs play a pivotal role in modern electronics for several reasons:

  1. Energy Efficiency: By optimizing power delivery and reducing losses, PMICs extend battery life and lower energy consumption, which is critical for portable devices and sustainable technology.
  2. System Reliability: Precise voltage regulation and protection mechanisms prevent damage to sensitive components, enhancing device durability and safety.
  3. Compact Design: By integrating multiple power management functions into a single chip, PMICs reduce the need for discrete components, enabling smaller, lighter devices.
  4. Cost Savings: The consolidation of power management functions lowers manufacturing costs and simplifies design, benefiting both manufacturers and consumers.
  5. Flexibility: Configurable PMICs support a wide range of applications, allowing designers to tailor power management to specific system requirements.

While PMICs are highly effective, they face challenges such as thermal management in high-power applications and the need for compatibility with diverse battery chemistries. Future trends in PMIC development include:

  • Advanced Process Nodes: Smaller, more efficient PMICs using cutting-edge semiconductor processes.
  • Integration with AI: PMICs that dynamically adjust power based on workload, leveraging machine learning for optimization.
  • Support for Fast Charging: Enhanced charging protocols to support rapid, safe battery charging.
  • Wide Bandgap Semiconductors: Use of materials like GaN or SiC for higher efficiency in high-power applications.
